shelves

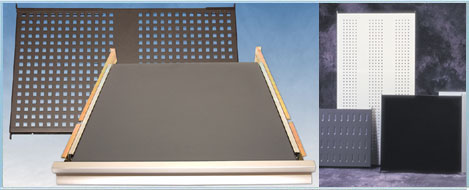

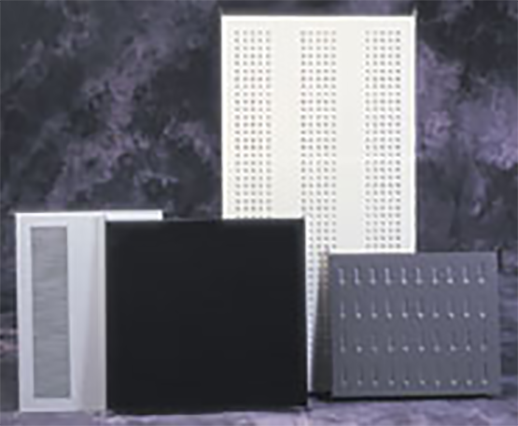

Available in all rack mount widths and various depths in:Fixed (stationary) Shelving – four point or cantilevered (front only) mounting used for mounting monitors, servers and peripherals.

• Solid
• Louvered
• Mesh (Perforated)
• Standard Duty – Static load capacity of 125 Lbs
• Heavy Duty – Static load capacity of 250 Lbs

Adjustable Depth Mounting Shelf – four point mounting with adjustable brackets for varying rack depth mounting. Shelf surface has front to rear adjustable mounting brackets to accommodate
varying rack depths.

Available in 19, 23 and 24″ rack mount widths with 24 and 30″ surface depths

Standard Duty – Static load capacity of 75 Lbs
Heavy Duty – Static load capacity of 125 Lbs

Pull Out (sliding) Shelves – four point mounting used for monitors, servers and peripherals with added accessibility.

Available in all rack mount widths and various depths in

Standard Duty – 75 Lbs weight capacity
Heavy Duty – 150 Lbs weight capacity
* Higher weight capacity shelves are available by quotation

Keyboard Tray – sliding tray, with a recess for the keyboard, which uses only one rack unit.

Available in 19, 23 and 24″ widths

* 19″ wide tray requires a keyboard 17″ wide or less

Rotating Keyboard Tray – sliding tray with turntable to accommodate a standard keyboard within a 19″ rack. Shelf uses two rack units for mounting. The chassis clearance on a 19″ rack is 17.75″. An average keyboard is 18″ wide, this rotating tray provides a clean solution for keyboard storage.
